ASX 8 - Amplifier Switcher
ASX 8 - Amplifier Switcher

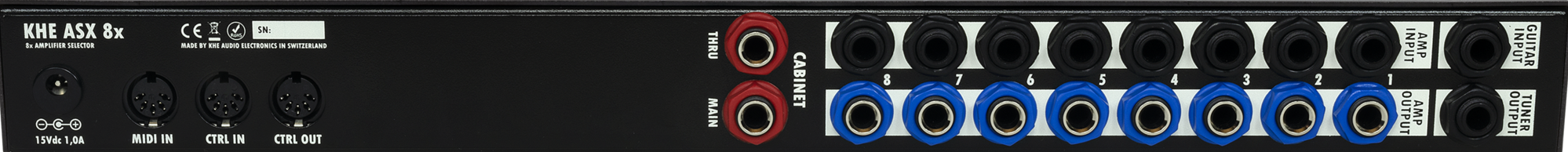

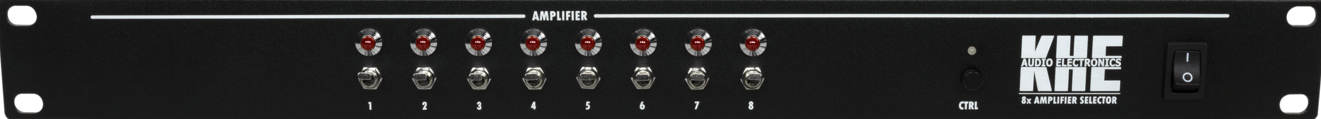

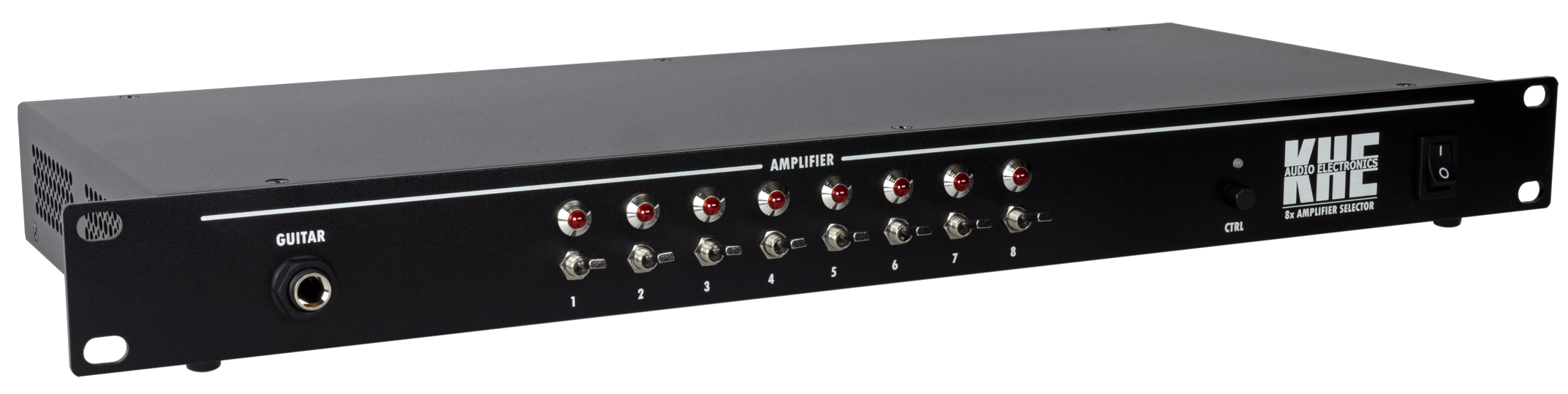

The KHE ASX 8 enables to switch between 8 guitar amps into one speaker cab or load box. It has two operation modes:
◾ Standalone Mode: The ASX can be used as a eight-channel amp switcher with a single load output. Perfect for 'silent recording’ setups with a single load box!
◾ Linked Mode: The ASX can be used to add eight additional amp channels to other KHE rack switchers. This allows to expand and grow the KHE switching system over time. (16x8, 24x8 and such)
◾ Linked Mode: The ASX can be used to add eight additional amp channels to other KHE rack switchers. This allows to expand and grow the KHE switching system over time. (16x8, 24x8 and such)
◾ Features: Dual-Cab Mode, MIDI Control
◾ Optional FX-Loop Switching with KHE AFX 8 extension
◾ Attenuators can be connected between the ASX speaker output and the load
◾ Multiple units can be linked to expand the switching options
◾ One amp and up to two cabs can be active at time
◾ Compatible with heads, combos, tube- and solid state amps
◾ Amps are fully protected by load resistors and advanced safety functions
◾ No hum or noise, and no clicks or pops while switching!
◾ Steel enclosure in 19" one unit rack space (20cm depth)
◾ Power supply included
◾ Professional amp switcher, built in Switzerland
◾ 30 day money-back guarantee
◾ Optional FX-Loop Switching with KHE AFX 8 extension
◾ Attenuators can be connected between the ASX speaker output and the load
◾ Multiple units can be linked to expand the switching options
◾ One amp and up to two cabs can be active at time
◾ Compatible with heads, combos, tube- and solid state amps
◾ Amps are fully protected by load resistors and advanced safety functions
◾ No hum or noise, and no clicks or pops while switching!
◾ Steel enclosure in 19" one unit rack space (20cm depth)
◾ Power supply included
◾ Professional amp switcher, built in Switzerland
◾ 30 day money-back guarantee
8x1 Switching System for Guitar Amplifiers, Speaker Cabinets and Load Boxes
Attenuator Insert Loop and MIDI control
The KHE ASX 8 can be used as a standalone 8x guitar amp switcher with 1 speaker cabinet or load out.
Alternatively, it can be used to expand other KHE ACS rack switchers with 8 additional amp channels.
The KHE ACS is the most advanced guitar amp switcher on the market:
Attenuator Insert Loop and MIDI control
The KHE ASX 8 can be used as a standalone 8x guitar amp switcher with 1 speaker cabinet or load out.
Alternatively, it can be used to expand other KHE ACS rack switchers with 8 additional amp channels.
The KHE ACS is the most advanced guitar amp switcher on the market:
✔ switch between any combination of guitar amps and cabs instantly, by the push of a button
✔ switch between speaker cabinets and load boxes for silent recording
✔ run pedals like boosts, overdrives, distortion and fuzzes in front of all amps
✔ use a single power attenuator across all amps
✔ full MIDI control
✔ switch while you play - no need to put amps into standby or stop playing!
✔ works with tube & solid-state amps, speaker cabinets & load boxes, heads & combos
✔ 100% safe for tube amps: no amp can be activated without a load, amps are protected by a load resistor
✔ modular system, multiple switchers can be linked together to expand switching capabilities
✔ switch between speaker cabinets and load boxes for silent recording
✔ run pedals like boosts, overdrives, distortion and fuzzes in front of all amps
✔ use a single power attenuator across all amps
✔ full MIDI control
✔ switch while you play - no need to put amps into standby or stop playing!
✔ works with tube & solid-state amps, speaker cabinets & load boxes, heads & combos
✔ 100% safe for tube amps: no amp can be activated without a load, amps are protected by a load resistor
✔ modular system, multiple switchers can be linked together to expand switching capabilities
FEATURES ASX 8
- Amp and Cab Switching – instantly switch between 8 amps and 1 cab. No need to put your tube amps into standby or stop playing!
- Attenuator Insert – attenuate the volume of all amps by inserting a global power attenuator into the post-amplifier pre-speaker insert loop (like Waza TAE, OX Top Box, Two Notes etc).
- Midi Remote Control - manage your entire amp collection at your footstep by using MIDI footswitch to control the ACS
- Link Mode - multiple switchers can be linked together to expand switching capabilities. Mix and Match the different models, and grow your switching system with your needs! 4x2, 4x4, 8x4, 8x1, 8x8, 12x4, 16x4, 16x8 ... everything is possible!
- Tuner Output
- Front & Rear Guitar Input
- Gound Lift
- FX-Loop Switching - add a KHE AFX 8 to share pedals like delay, reverb, gates or multieffects in the fx-loops of all amps
TECHNOLOGY
Inside the ACS, a digitally controlled relay matrix switches between all amps and cabs. The switching procedure is timed and controlled by a microcontroller for fast, precise and reliable switching. A special mute circuit removes any clicks and pops during switching -the switching process is more silent than most amp’s channel switching! Advanced shielding techniques are used inside the ACS to shield the sensitive input lines from the powerful output lines.
COMPATIBILITY
The KHE ACS is compatible with all types of amplifiers and load devices, such as tube amps, solid-state amps, speaker cabinets, load boxes and power attenuators, up to 150 watts per channel. It works beautifully from sparkling clean sounds to ripping high-gain tones!
SAFETY FEATURES
Load Resistors - All amps are connected to a dummy load resistor to protect the power amps. All unused amps get muted at their inputs, so no signals can reach the power amp.
Load Detection - Cabinet jacks are supervised for a speaker cabinet or load box. If no load is connected, the cabinet outputs are automatically locked and excluded from the switching operation.
This ensures amplifiers can never be activated without a real load connected.
No Cab? No Amp! A clever digital switching logic makes sure no invalid combination is possible: If no load is activated, you can not enable an amplifier.
Inside the ACS, a digitally controlled relay matrix switches between all amps and cabs. The switching procedure is timed and controlled by a microcontroller for fast, precise and reliable switching. A special mute circuit removes any clicks and pops during switching -the switching process is more silent than most amp’s channel switching! Advanced shielding techniques are used inside the ACS to shield the sensitive input lines from the powerful output lines.
COMPATIBILITY
The KHE ACS is compatible with all types of amplifiers and load devices, such as tube amps, solid-state amps, speaker cabinets, load boxes and power attenuators, up to 150 watts per channel. It works beautifully from sparkling clean sounds to ripping high-gain tones!
SAFETY FEATURES
Load Resistors - All amps are connected to a dummy load resistor to protect the power amps. All unused amps get muted at their inputs, so no signals can reach the power amp.
Load Detection - Cabinet jacks are supervised for a speaker cabinet or load box. If no load is connected, the cabinet outputs are automatically locked and excluded from the switching operation.
This ensures amplifiers can never be activated without a real load connected.
No Cab? No Amp! A clever digital switching logic makes sure no invalid combination is possible: If no load is activated, you can not enable an amplifier.
SPECIFICATIONS | ASX 8
◾ Amplifier Switching: 8x (mono, one amp active at the time)
◾ Cabinet & Load Switching: 1x (two cabs can be active at the time)
◾ Load Resistors: YES
◾ Dual-Cab Mode: YES
◾ Attenuator Insert Loop: YES
◾ FX-Loop Switching: optional by adding KHE AFX 8
◾ MIDI Control: YES
◾ Tuner Output: YES
◾ Modular System: YES
◾ Ground Lift: YES
◾ Switching Element: Relays, analog, sequential switched
◾ Control System: Microcontroller, digital
◾ Power Handling: switches max. 150 Watts per Channel
◾ Amplifier & Speaker Impedance: 1:1 pass-thru, passive
◾ Amp Switching: switches both guitar input and speaker output
◾ Attenuator Insert: serial, passive, Speaker Level
◾ MIDI Control: MIDI Input, 15 Channels, CC & PC Messages
◾ Switching Time: 15ms max.
◾ Contact Resistance: > 0.1 Ohm
◾ Guitar Input Impedance: 2,2 MOhm
◾ Guitar Input Type: active buffered
◾ Guitar Input Level: 15Vpp / +18dBu
◾ Frequency Range: 10-100kz +/-0.2dB
◾ Dimensions: 483 x 200 x 44mm / 19” 1U
◾ Enclosure: 1,5mm Steel
◾ Weight: 3.5kg
◾ Power Supply: 15VDC, 90-240VAC, external type, included
◾ Connectors: colour-coded for easy wiring
◾ Country: Switzerland
◾ Warranty: 2 Years
◾ User Manual: LINK
IMPORTANT NOTES:
◾ no amp can be activated if no load is activated!
◾ no stereo amp switching - mono only!
◾ no bi-amping - only one amp active at the time!
◾ no cables included (instrument, speaker or midi)
◾ no built-in load box for silent recording (external load required)
◾ no remote foot controller included
◾ Amplifier Switching: 8x (mono, one amp active at the time)
◾ Cabinet & Load Switching: 1x (two cabs can be active at the time)
◾ Load Resistors: YES
◾ Dual-Cab Mode: YES
◾ Attenuator Insert Loop: YES
◾ FX-Loop Switching: optional by adding KHE AFX 8
◾ MIDI Control: YES
◾ Tuner Output: YES
◾ Modular System: YES
◾ Ground Lift: YES
◾ Switching Element: Relays, analog, sequential switched
◾ Control System: Microcontroller, digital
◾ Power Handling: switches max. 150 Watts per Channel
◾ Amplifier & Speaker Impedance: 1:1 pass-thru, passive
◾ Amp Switching: switches both guitar input and speaker output
◾ Attenuator Insert: serial, passive, Speaker Level
◾ MIDI Control: MIDI Input, 15 Channels, CC & PC Messages
◾ Switching Time: 15ms max.
◾ Contact Resistance: > 0.1 Ohm
◾ Guitar Input Impedance: 2,2 MOhm
◾ Guitar Input Type: active buffered
◾ Guitar Input Level: 15Vpp / +18dBu
◾ Frequency Range: 10-100kz +/-0.2dB
◾ Dimensions: 483 x 200 x 44mm / 19” 1U
◾ Enclosure: 1,5mm Steel
◾ Weight: 3.5kg
◾ Power Supply: 15VDC, 90-240VAC, external type, included
◾ Connectors: colour-coded for easy wiring
◾ Country: Switzerland
◾ Warranty: 2 Years
◾ User Manual: LINK
IMPORTANT NOTES:
◾ no amp can be activated if no load is activated!
◾ no stereo amp switching - mono only!
◾ no bi-amping - only one amp active at the time!
◾ no cables included (instrument, speaker or midi)
◾ no built-in load box for silent recording (external load required)
◾ no remote foot controller included
042923-B500G-1013
